Reduces excessive speed by 19.2%*
The most powerful radar
The most powerful radar
*According to a McGill University study
Specifications
Speed Display Documents
Get product
details
Download the brochure, technical specifications, and other documents for the speed radar display
Unmatched light intensity
- Up to 10,000 cd/m², depending on ambient light
- Optimal viewing angle: 55 degrees
- Curved and anti-glare front panel
The most durable radar
- ISO 9001 certification
- Extended 5-year warranty on our Premium range
Compliance
- Fully compliant with MTQ Volume V
- Compliant with MUTCD-C
Operating temperature
- Between -40 and +80°C (-40 to +175°F)
Antenna
- Range: up to 300 m
- Accuracy: ±1%
- Detection angle: 33 degrees
- Frequency: 24.125 GHz
Digits
- 3 digits (from 0 to 199)
- Dimensions: 380 x 450 mm
- Colors: green / amber / red
- Visibility: 3 LEDs per row
LEDs
- High-brightness OSRAM C.M.S
- Ultra low power consumption
- Lifespan > 100,000 hours
Messages
- Dimensions: 160 x 640 mm (H x W)
- 1 line of 8 characters or 2 lines of 11 characters
- Color: amber
- Customizable messages (text and pictograms)
Analysis: In both directions of travel (incoming/outgoing)
Data: Average and maximum speeds, number of vehicles, timestamp, percentiles (V30/V50/V85)
Memory: 16 MB or up to 5 million vehicles recorded
Operation: Via the software suite, exportable to Excel, CSV or PDF

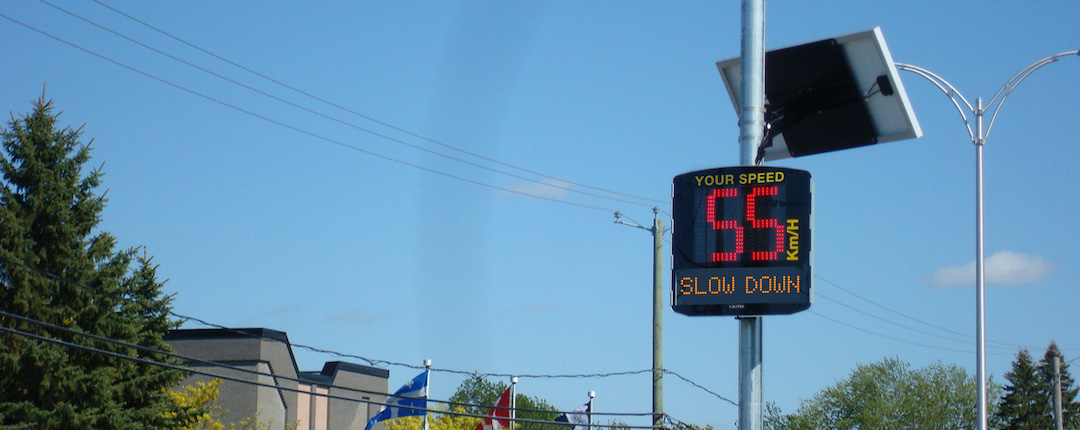

A smile that makes you slow down
Kalitec's radar speed sign combines intelligent tricolor signaling and dynamic pictograms to quickly capture drivers' attention.
This visual feedback encourages compliance with posted speed limits and helps improve road safety in school zones, residential areas, and pedestrian environments.
Regular vs. Premium Comparison
regular
Autonomy and visibility equivalent to market standards. Same durability as the Premium range.
Premium
Uncompromising excellence. Total visibility and autonomy, whatever the conditions. 5-year warranty.
| Regular | Premium | |
|---|---|---|
| Display | Industry standard | Performance mode |
| Radar Range | 100 m | Up to 300 m |
| Brightness | Standard | 2x more visible |
| Speed Display | Energy-saving mode | Constant display |
| Solar Power Supply | Standard kit | Extended autonomy kit |
| Solar Panel | 50W | 100W |
| Batteries | 1X | 2X |
| Warranty | 2 years | 5 years |
Solar Panel
The solar version, chosen by over 95% of our customers, guarantees complete autonomy all year round (thanks to its oversized solar array and batteries adapted to the Nordic climate).
10,000 CD/m2 LCD display
The speed display is composed of 3 rows of high-performance, long-range LED beams offering visibility 2x greater than what is available on the market
POSTS
Material: Aluminum or hot-dip galvanized steel
Diameter: 4 inches
Length: 3600 mm or more
Color: Black
Base cover : For an aesthetic finish
Kalitec Anchors
- Available for all types of ground: ground, asphalt, concrete
- Quick and easy installation
More Visible. More Effective.
With its three rows of high-resolution LEDs, the Kalitec speed display ensures quick readability and exceptional visibility.
Its large-format display attracts more attention from drivers and enhances the effectiveness of traffic management measures.
New EVOCOM 6 Software
EVOCOM 6 combines powerful functionality with an intuitive, user-friendly interface.
Whether you need to configure a radar sign, update a message, or analyze traffic data, the platform makes every task simple and efficient through a centralized management system.
Yes. EVOCOM 6 was designed with ease of use in mind. Its modern interface and intuitive navigation allow users to quickly access all features, reducing training time while improving day-to-day efficiency.
EVOCOM 6 offers several complementary display modes to maximize driver awareness and adapt to different traffic management goals:
- Tricolor display: Green, Amber, and Red
- Bicolor display: Green and Red
- Amber-only display
- Smiley mode with alternating green and red smileys displayed alongside vehicle speed
- Anti-racing mode that suppresses the speed display when a predefined threshold is exceeded
- Strobe mode that flashes messages for greater visual impact
Yes. EVOCOM 6 includes a built-in simulator that allows users to preview and validate messages before deploying them in the field, ensuring optimal configuration and effectiveness.
Absolutely. EVOCOM 6 centralizes the management of your entire fleet of speed display signs, making it easy to configure, schedule, monitor, and update multiple devices from a single platform.
EVOCOM 6 collects and analyzes a wide range of traffic data, including average speeds, traffic volumes, speed distribution, vehicle counts, and overall driver behavior patterns.
Through comprehensive dashboards and easy-to-read reports, EVOCOM 6 allows users to compare traffic data before, during, and after awareness campaigns or traffic safety interventions, providing clear insight into their effectiveness.
Yes. EVOCOM 6 presents data through intuitive charts, graphs, and reports that make complex traffic information easy to understand. This enables administrators and decision-makers to quickly identify trends and take informed action.
Yes. EVOCOM 6 can separately analyze incoming and outgoing traffic speeds, providing a more detailed understanding of traffic flow and driver behavior in each direction.
EVOCOM 6 reports help organizations:
- Identify speeding issues and traffic patterns
- Evaluate the impact of safety measures
- Support funding and grant applications
- Justify interventions to residents, stakeholders, and elected officials
- Improve planning for future traffic management projects
Because EVOCOM 6 transforms raw traffic data into clear, actionable insights. Municipalities can make data-driven decisions, improve road safety, and maximize the return on their traffic management investments with confidence.
Powerful, easy-to-use software
Statistics and Analysis
Your Radar Speed Sign at a glance:
Kalitec's EVOLIS radar speed sign is the most used model in the world with over 45,000 units deployed. It stands out as the most efficient in its category thanks to optimal visibility of 10,000 cd/m² and an exceptional warranty. Our Premium model offers up to 5 years of warranty on parts and labor, far exceeding market standards.
Its robustness is proven: designed to withstand extreme conditions (from -40°C to +80°C), it uses high-performance materials (reinforced ABS, anti-UV polycarbonate) and has IP65 waterproofing. Our radars are built to last, as evidenced by a model installed in Paris since 2015, still in service.
The EVOLIS Vision radar speed sign stands out with its calendar function, which allows you to schedule its operation according to your time slots. It is also equipped with customizable thresholds (anti-race threshold, spy mode, etc.). Its ultra-precise Doppler detection, with a range of 300 m and a 33° angle, ensures instantaneous and reliable measurement.
The device collects traffic statistics in both directions (average and maximum speeds, number of vehicles, and timestamp), offering a complete overview of the road situation. Four power modes are available — solar, mains, battery, or hybrid — ensuring maximum autonomy depending on the site's needs. A complete software suite, included without license fees, allows for data analysis and export in Excel, CSV, or PDF formats.
Designed with robust materials and advanced technology, it withstands the elements and operates day and night, even in the most demanding environments.
Its extended warranty provides complete peace of mind, while its intelligent design ensures exceptional longevity. It is the ideal solution for municipalities seeking durable road safety and proven performance.
Thanks to simple configuration via USB or Bluetooth, and a 4G option for remote management, the Kalitec EVOLIS Vision radar speed sign offers intuitive connectivity. Its integrated software allows for real-time traffic data analysis to optimize road safety, making it a high-performance connected radar.
Frequently Asked Questions
Yes. The Kalitec radar speed sign does more than just display speed: it transforms your data into real decision-making tools. Thanks to its connected technology and integrated software suite, it analyzes traffic in both directions in real time, records average and maximum speeds, lists speeding incidents, and prevents dangerous behavior (anti-racing thresholds).
It provides detailed reports exportable in Excel, CSV, or PDF formats, allowing you to measure the effectiveness of your interventions, identify high-risk areas, and proactively optimize road safety.
The Transportation Association of Canada (TAC) is a national, non-profit organization that supports the development of safe and efficient transportation systems. It brings together public and private sector professionals to share knowledge and create guidelines for roads, traffic, and infrastructure. TAC does not regulate transportation; instead, it provides best practices and research that help governments and engineers improve transportation planning, safety, and operations across Canada.
Visit our resources to learn more about the TAC.
Particularly useful for impact studies, the "spy mode" allows for the comparison of driver behavior when the radar is active or "invisible". In this mode, the radar does not display any data on the screen but continues to discreetly record all traffic statistics for a neutral analysis of the situation.
You can exchange data with your radar via a PC (USB cable provided), Bluetooth®, or directly from your tablet or smartphone (Android/iOS).
For simplified management, the 4G EvoWeb option allows remote control and data analysis via a web interface, thus avoiding any on-site travel. The Connect box provides the EVOLIS radar with a standalone cellular connection, easy to implement and simple to install without complex technical intervention.
Absolutely. Designed with ABS resin and reinforced polycarbonate, its unibody housing guarantees perfect sealing and total protection of components. The absence of external screws eliminates any risk of corrosion. Its color and in-mass UV treatment ensure maximum aesthetic and structural longevity.
The anti-reflective front panel ensures optimal visibility in all circumstances. Its slightly curved shape protects the LEDs from projectile impacts. The reliability of our products is such that only 2% of radars are returned under warranty. If needed, our specialists will assist you with telephone diagnostics or on-site training.
Yes. The Kalitec radar benefits from a clever design allowing installation or relocation in a few minutes by a single person, on any existing support.
Delivered pre-configured, the EVOLIS Vision weighs only 9.2 kg (the equivalent of a pack of water). Its wide 33° detection angle facilitates orientation, while its universal mounting bar and specific supports meet all types of installation. The system can also be secured with a padlock.
